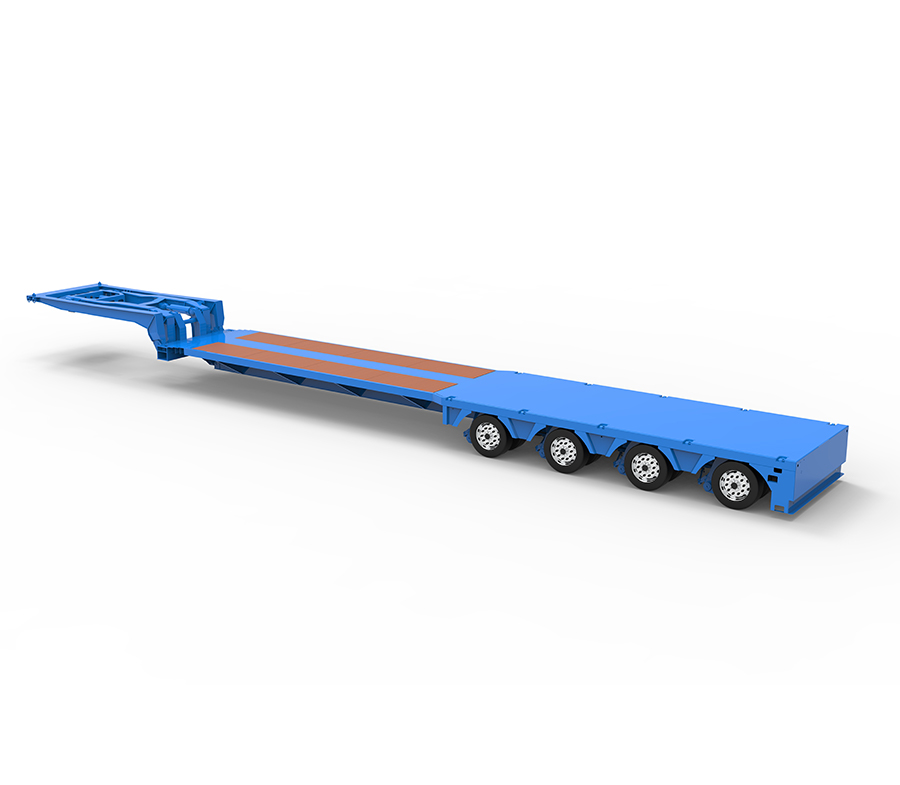

Blade Trailer
1
Product Description
| Hydraulic gooseneck dimensions(mm) | 5200(L)*2450(W) |
| Traction plate height (mm) | 1400 |
| Traction pin specification | 3.5 /2 |
| Gooseneck height (mm) | 1750(+1700) |
| Front platform dimensions (mm) | 2550x400 |
| Height of front platform (mm) | 1170 |
| Rear platform height (mm) | 1425±300 |
| Wheel track (mm) | 1940 |
| Spread of axles (mm) | 1810 |
| Number of axes | 8 |
| Distance between front and rear fulcrum (mm) | 70000 |
| Fulcrum position load(T) | front and back 30 |
| Maximum load per axis(kg) | 10000 |
| Steering configuration | Hydraulic servo steering + remote control steering |
| Steering angle | Max 35° |
| Tyre size | 295/60 R22.5 |
| Number of tires | 2 pieces/per axis |
