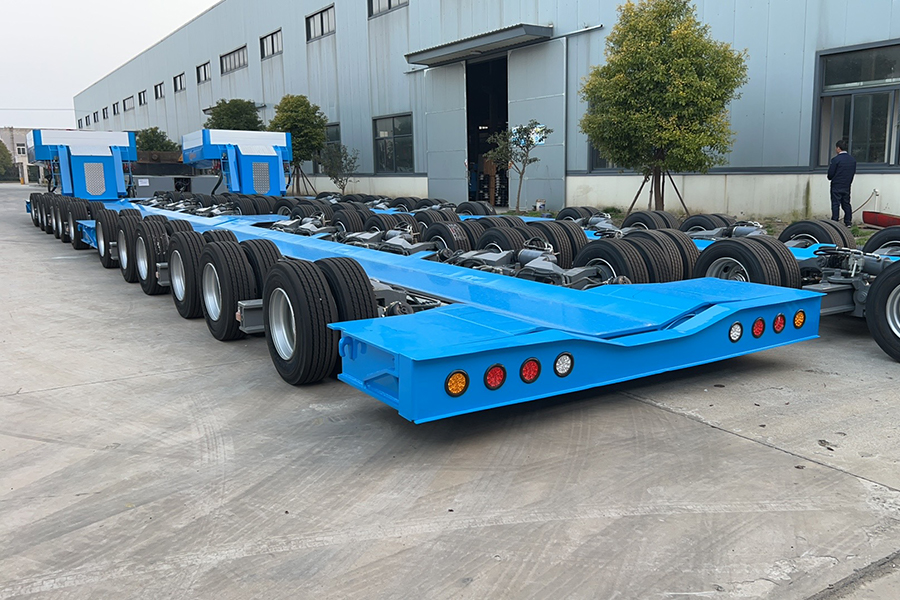

Lowloader Trailers
1
Product Description
| Technical Data Sheet | |
| Height of towing turntable(mm) | |
| Traction pin size | 3.5"/2" |
| Unit Module | 2-axis line 4-axis line 6-axis line |
| Effective Cargo Table Length(mm) | 3640 6340 9040 |
| Width (mm) | 3200(+300) |
| Platform height(mm) | 515(+110 -100) |
| Pull-out beam (mm) | 7015(+4500) |
| Optional splice beam (mm) | 3500/pc |
| Wheelbase(mm) | 2690(+300) |
| Wheelbase(mm) | 1600 |
| Maximum load per axle line(kg) | 15000 |
| Floating height of cargo platform(mm) | +110/-100 |
| Tires | 235/75 R17.5 |
| Rims | 6.75 (10 holes) |
| Number of tires | 4/per axle line |
| Brake System | Dual line control |
| Brake starting air pressure (bar) | ＞5 |
| Hydraulic system working pressure (bar) | 250 |
| Electrical equipment working voltage (V) | DC24 |
| Minimum ground clearance (mm) | 30 |
| Maximum steering angle (degree) | 30° |
| Operating speed (km/h) | <85 |
Related products
-
" limit="6" child="1" no_p="1" page_num="5"}
-
" limit="6" child="1" no_p="1" page_num="5"}
-
" limit="6" child="1" no_p="1" page_num="5"}
-
3The 2-axis fine-tuning steering (±300mm) construction machinery transporter is a high-perf...
" limit="6" child="1" no_p="1" page_num="5"}
-
4The 2-axle single-tire precision instrument transporter is a professional transport tool d...

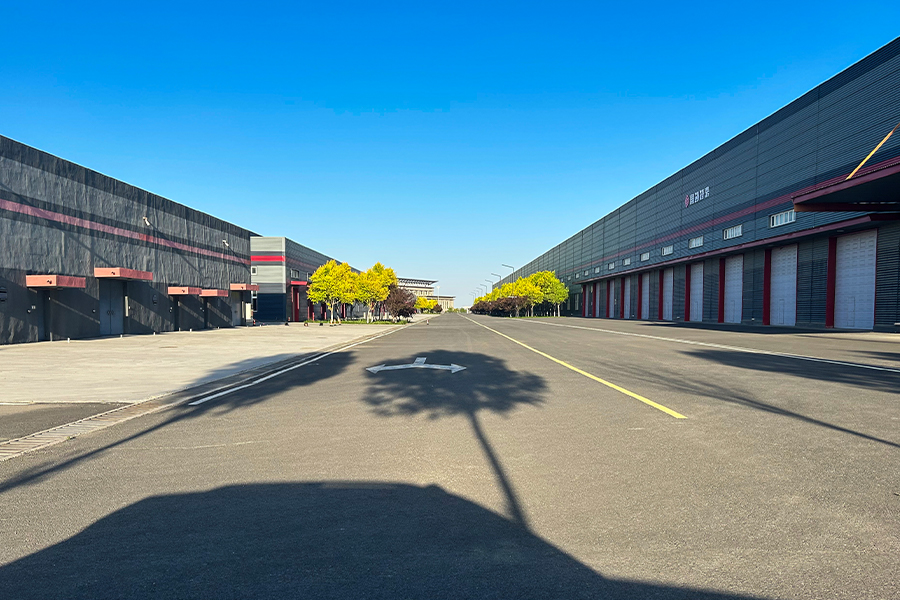

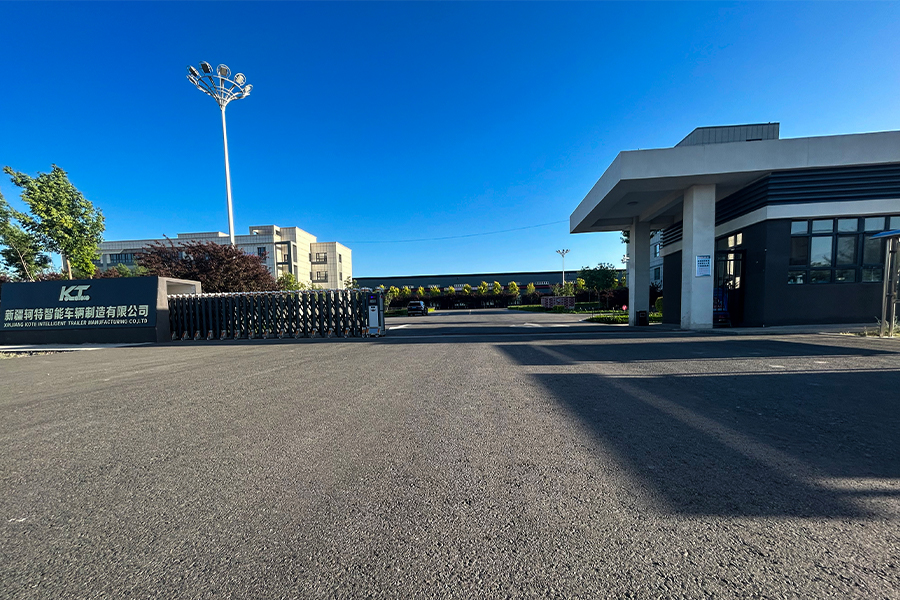

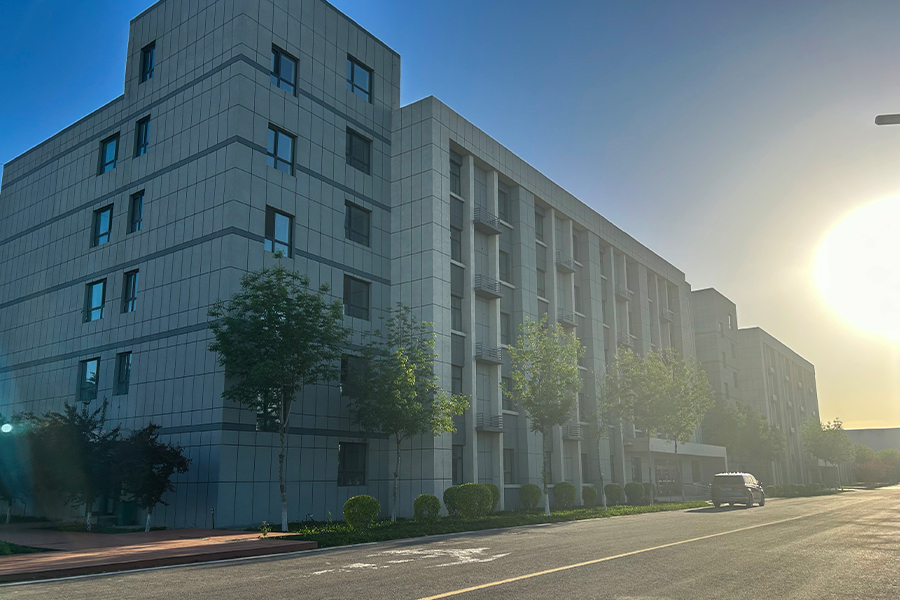

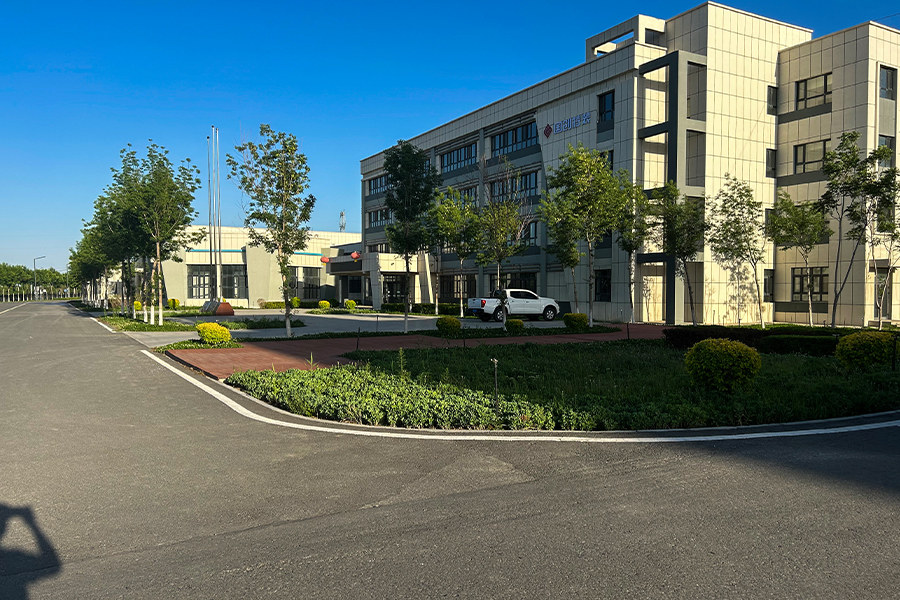

Factory Show
