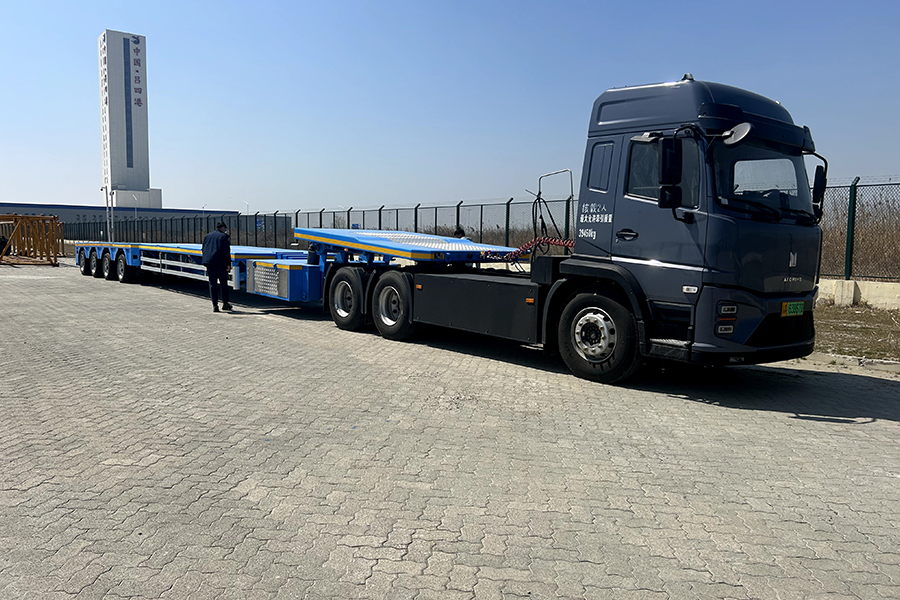

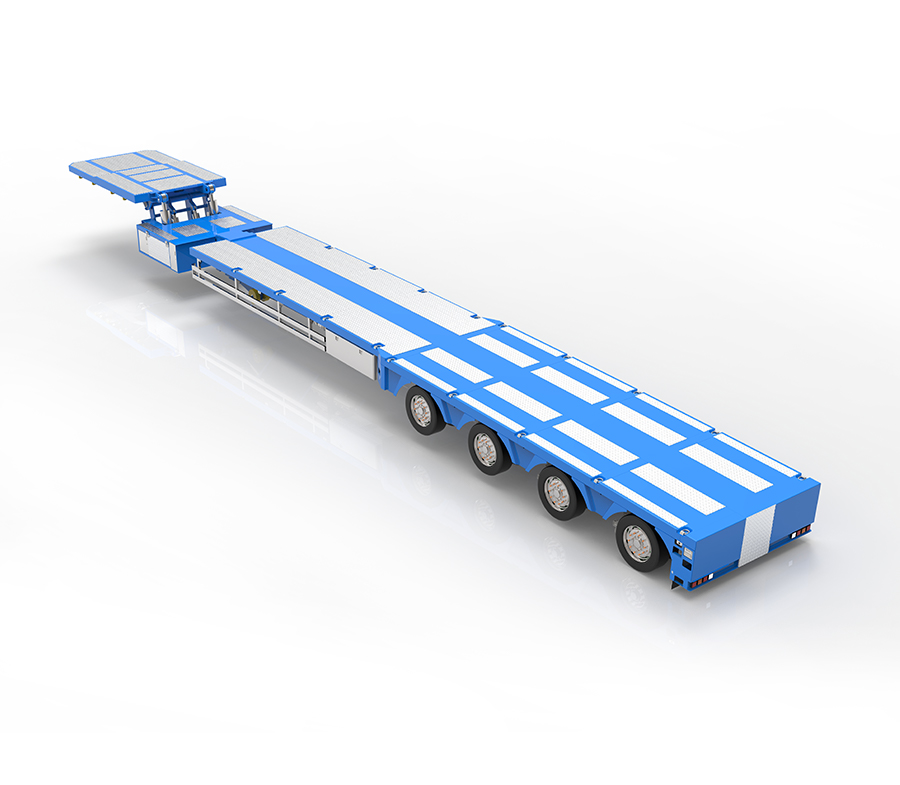

Blade Trailer
2
Product Description
| Vane Car Technical Data Sheet | |
| Hydraulic gooseneck external dimensions(mm) | Length 4130*Width 2450 |
| Height of traction turntable(mm) | 1400 |
| Traction pin specification | 90#(3.5 inch) |
| Dimension of front cargo platform(mm) | Length 2550*Width 1500 |
| Height of front platform(mm) | 965(+715 -200) |
| Rear platform height(mm) | 1330(+395 -200) |
| Wheelbase(mm) | Wheelbase(mm) |
| Wheelbase(mm) | 1810 |
| Number of axles | 8 |
| Total pivot distance(mm) | 70000 |
| Pivot position load(T) | Front and rear 30 |
| Maximum load per axis(kg) | 10000 |
| Steering Mechanism | Hydraulic follower + remote control steering |
| Steering angle | Maximum 35° |
| Tire | 295/60 R22.5 |
| Number of tires | 2 per axle |
