Low cargo platform is a professional transportation tool designed for the transportation o...

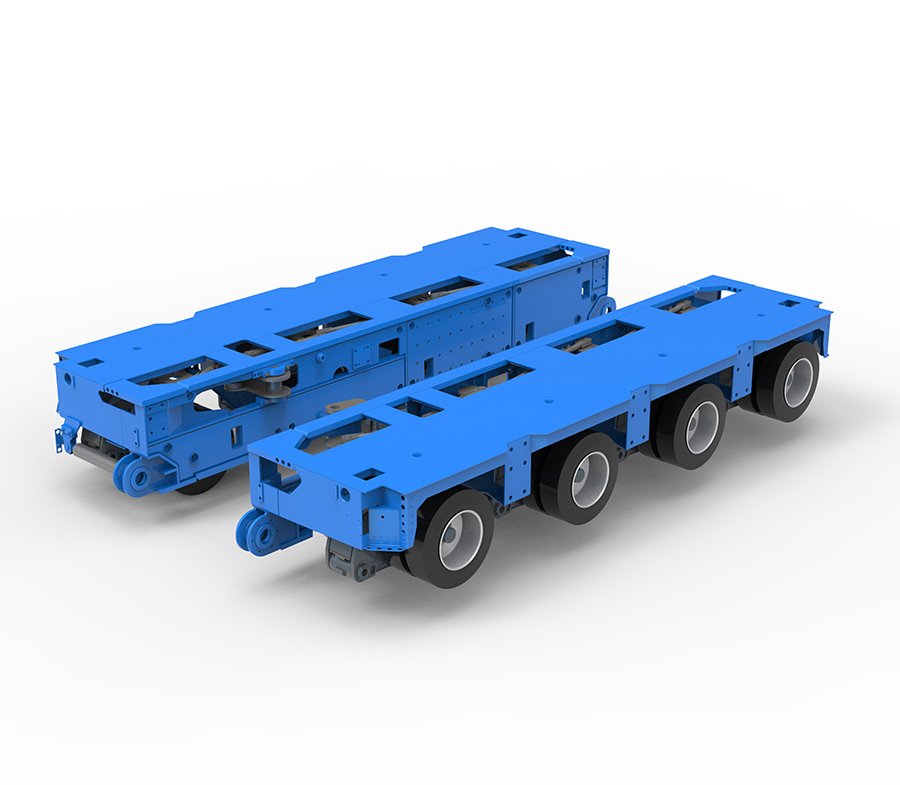

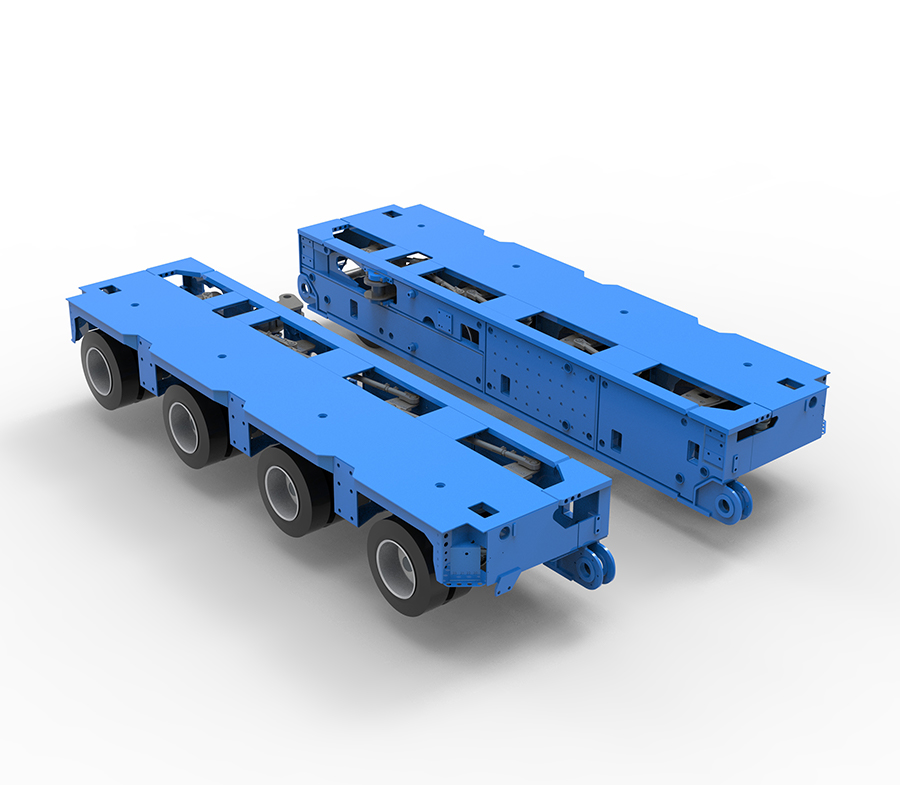

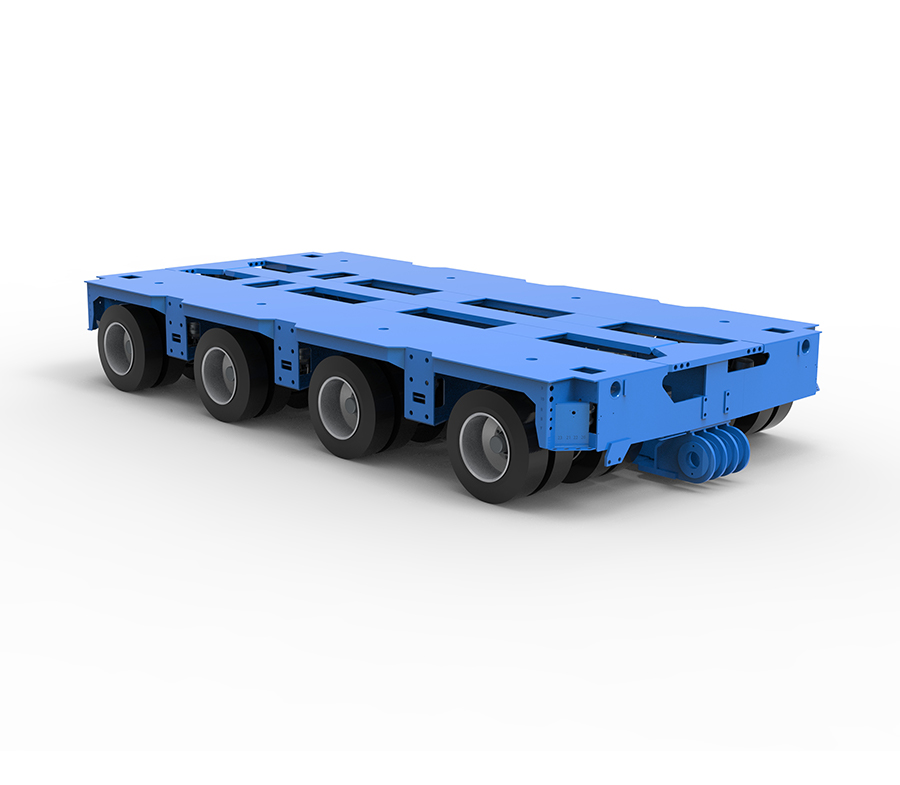

Low cargo platform is a professional transportation tool designed for the transportation of high-demand goods such as military industry, medical equipment, and large precision instruments. With its unique low cargo platform design and advanced steering and suspension technology, the vehicle can provide transportation performance in various complex terrains and environments, ensuring the stability and safety of the goods during transportation.
TOWED
4 AXLE
Product Description
| 4-Axis Technical Data Sheet | Details |
| Unit Vehicle and Unit Vehicle Combination | 4 axles |
| Effective Loading Platform Length (mm) | 6000 |
| Width (mm) | 2990 |
| Height (mm) | 1165 |
| Front Overhang / Rear Overhang (mm) | - |
| Track (mm) | 735/1800 |
| Wheelbase (mm) | 1500 |
| Unit Vehicle Self-Weight (kg) (without auxiliary equipment) | 15100 |
| Total Number of Axles | 4 |
| Maximum Load per Axle (kg) | 36000 |
| Number of Wheel Pairs per Axle (pieces) | 2 |
| Maximum Load per Axle (kg) | 18000 |
| Steering Mechanism | Full-axle hydraulic traction steering or active steering |
| Traction Rod Steering Angle (degree) | Maximum 53° |
| Wheel Pair Steering Angle (degree) | Maximum 53° |
| Loading Platform Floating Height (mm) | +305/-225 (530) |
| Approximate Self-Weight per Wheel Pair (kg) | 850 (axle, suspension and tire) |
| Tire | 215/75R17.5 |
| Rim | 6.0-17.5 (10 holes) |
| Number of Tires | 8 pieces per axle |
| Tire Arrangement | Dual tires mounted side by side |
| Suspension Mode | Hydraulic suspension with three-point or four-point support |
| Brake System | Dual-line control |
| Brake Device Starting Air Pressure (bar) | 5 |
| Hydraulic System Working Pressure (bar) | 250 |
| Electrical Equipment Working Voltage (v) | 24 |
| Minimum Ground Clearance (at height of 940mm) | 80 |
| Running Speed | - |
| Running Speed (km/h) | 15 (full load) |
