Semi Lowloaders
1
Product Description

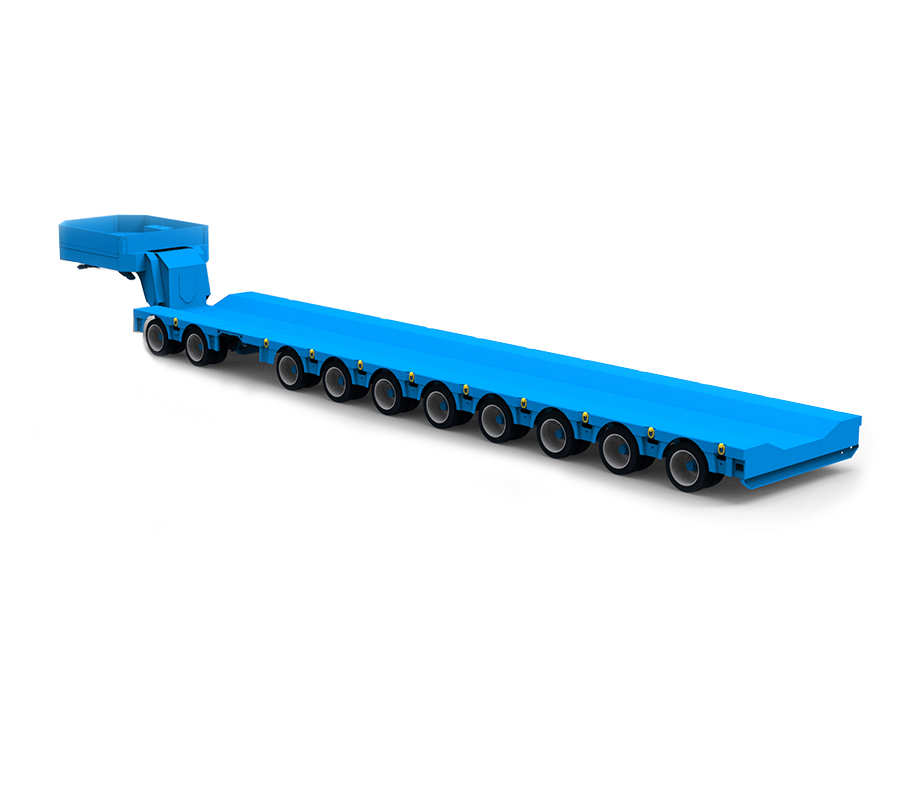

| Hydraulic Suspension Vehicle Technical Data Sheet | |
| Height of traction turntable(mm) | 1400 |
| Traction pin specification | 3.5"/2" |
| Effective cargo platform length(mm) | 16100 (minimum size) |
| Draw length(mm) | 16000 |
| Width(mm) | 3200 |
| Height of cargo table surface(mm) | 920 |
| Lifting height of cargo table(mm) | 65 |
| Rated load of cargo table(kg) | 100000 |
| Wheelbase(mm) | 2620 |
| Wheelbase(mm) | 1370 |
| Maximum load per axle line(kg) | 10000 |
| Tires | 275/70 R22.5 |
| Number of tires | 4 per axle |
| Brake system | Dual line control |
| Brake starting air pressure (bar) | ＞5 |
| Hydraulic system working pressure (bar) | 250 |
| Electrical equipment working voltage (V) | DC24 |
| Operating speed (km/h) | <85 |
